Let's talk Ripple



Deploy a smarter platform for your broadband service delivery

The cOS™ Ripple remote PHY node can simplify your operations, reduce truck rolls, and lower your hardware investments. With complete deployment flexibility, you can change your diplexers in the field to extend the life of your hybrid fiber-coaxial network and easily transition to the next generation of broadband networks over time.

2X4
Configuration options with 1x1, 1x2, 2x2, 2x4 segmentation
Green
Lowest power with full DOCSIS 3.1 functionality
FD/BAU
Modular RF launch amplifier with options for lower or higher output
US Split
Diplex filters can be swapped in the field for plant expansions

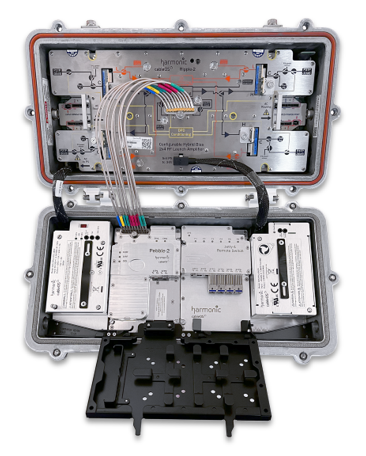

ripple-daa-node

Modular & simple for the agility to evolve

You can provide high-speed data, video and voice services over coax, and reduce operational costs. Improve your system performance over temperature with highly accurate power and tilt control.

Evolve fiber deep deployments and prepare your network for future growth. Leverage superior RF performance and spend less time in the field with built-in remote configuration capabilities.

Flexible
Options for RPDs and power supplies
Simple
Remote RF configuration without plugins
Smart
Advanced software features provide network insight
1.2Ghz
Use the full DOCSIS 3.1 spectrum with simplified licensing

Ripple R-PHY Node features

The Ripple Modular DAA Node provides a flexible solution that can scale with your network over time.

Enhanced RF quality

Deploy DOCSIS 3.1 fast and leverage the full spectrum

Node Analytics

Troubleshoot remotely to reduce your truck rolls and boost your proactivity

Redundant power supplies

Dual powered redundancy so your network is always running

Full DAA support

Support for both your IP and legacy services

Configure remotely

Gain and tilt control for simplified installation and RPD replacement

cOS Central monitoring

24/7/365 system health monitoring for optimal performance

Compare our DAA nodes

Mounting Mounting
Physical Dimension Physical Dimension
Number of RPDs Number of RPDs
Number of Jetty Ethernet Switches Number of Jetty Ethernet Switches
Possible DSxUS Configurations Possible DSxUS Configurations
PSU Redundancy PSU Redundancy
Integrated UPS Integrated UPS
RF Ports RF Ports
Cable Power Cable Power
110VAC/220VAC Mains Power 110VAC/220VAC Mains Power

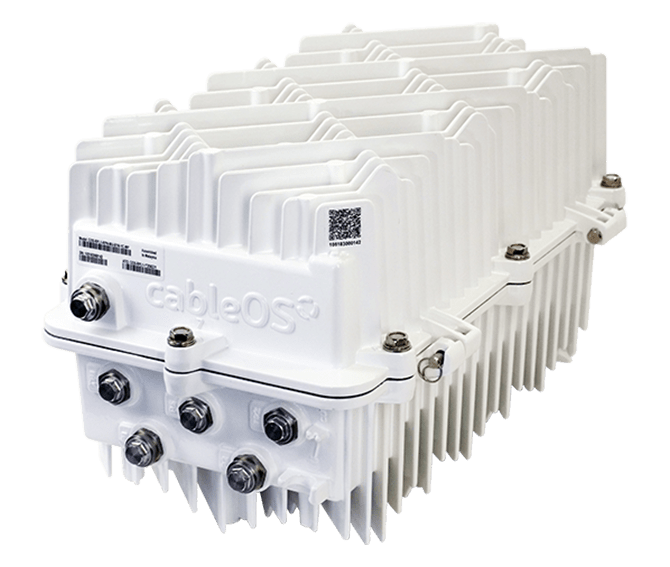

use-case-ripple

Ripple Modular
DAA Node
Mounting Strand mounting
Physical Dimension Mid size
Number of RPDs 1 or 2 RPDs
Number of Jetty Ethernet Switches Up to 2
Possible DSxUS Configurations 1x1, 1x2, 1x3, 1x4, 2x2, 2x3, 2x4
PSU Redundancy 1+1
Integrated UPS
RF Ports 4 independent
Cable Power
110VAC/220VAC Mains Power
request a quote

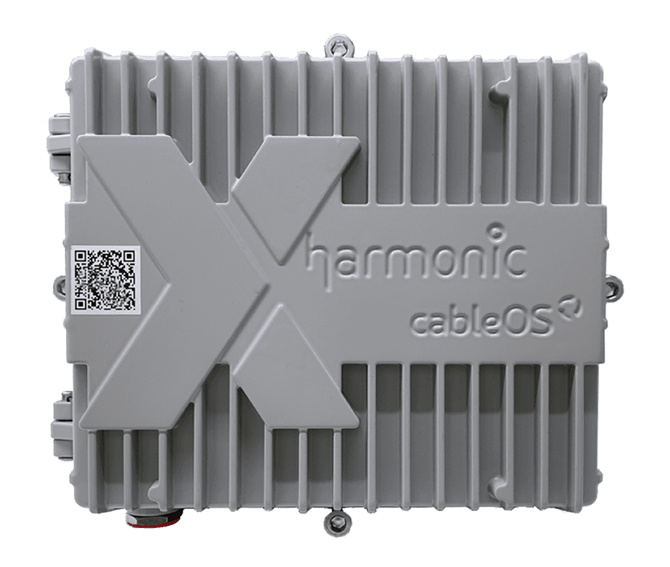

use-case-shell

Shell Compact
DAA Node
Mounting Wall mounting
Physical Dimension Compact
Number of RPDs Single RPD
Number of Jetty Ethernet Switches Not supported
Possible DSxUS Configurations 1x1, 1x2
PSU Redundancy
Integrated UPS
RF Ports 2+1 (split)
Cable Power
110VAC/220VAC Mains Power
Discover Shell
Oyster Low Power DAA Node

Oyster Low-Power
DAA Node
Mounting Wall mounting
Physical Dimension Compact
Number of RPDs Single RPD
Number of Jetty Ethernet Switches 1
Possible DSxUS Configurations 1x1, 1x2
PSU Redundancy
Integrated UPS
RF Ports 2+1 (split)
Cable Power
110VAC/220VAC Mains Power
Discover Oyster
left-right-img-daa-gaming

Ripple DAA node for all your broadband needs

Virtualize your CMTS

The cOS VCMTS software lets you disaggregate the CMTS to start leveraging the full benefits of cloud-native virtualization. Reduce energy and real-estate to prepare for your seamless migration to the next generation of broadband.



READ THE BLOG >>
Deploy R-PHY

Understand the essential steps and prepare for your R-PHY deployment. The cost benefits go far beyond just speed and optimization. Set your access network up for the future of broadband today.



READ THE BLOG >>
Prepare for DAA

Get key insights on how your business benefits from a virtualized cable access network. The first step to DAA is virtualization. You can start your journey now at a lesser cost with increased savings.



DISCOVER HARMONIC DAA SOLUTION >>
